Our WEICHAI Trailer Mounted Diesel Generator Set is designed for reliable, flexible and efficient mobile power supply. Powered by WEICHAI diesel engines, this trailer type genset offers strong power output, easy transportation and stable performance for outdoor, temporary and emergency power applications.
With a power range from 50kW to 1100kW, the WEICHAI trailer generator set is suitable for construction sites, mining projects, road works, industrial backup power, rental business, emergency rescue and remote areas where stable electricity is required.
The WEICHAI trailer diesel generator set combines a reliable diesel engine, high-quality alternator, intelligent control system and heavy-duty trailer chassis. The genset can be easily moved between different job sites and quickly connected for power supply.
The trailer structure can be customized according to project requirements, including single-axle or tandem-axle design, silent canopy, weatherproof canopy, braking system, road lighting system and adjustable support jacks.
Equipped with a WEICHAI engine, the generator set provides strong power, reliable performance, good fuel economy and easy maintenance. It is suitable for both standby power and prime power applications.
The WEICHAI trailer mounted genset covers 50kW to 1100kW, meeting different power requirements from small mobile power supply to large industrial projects.
The trailer mounted design makes the generator set easy to tow and relocate. It is ideal for temporary power projects, rental use and worksites that require flexible power deployment.

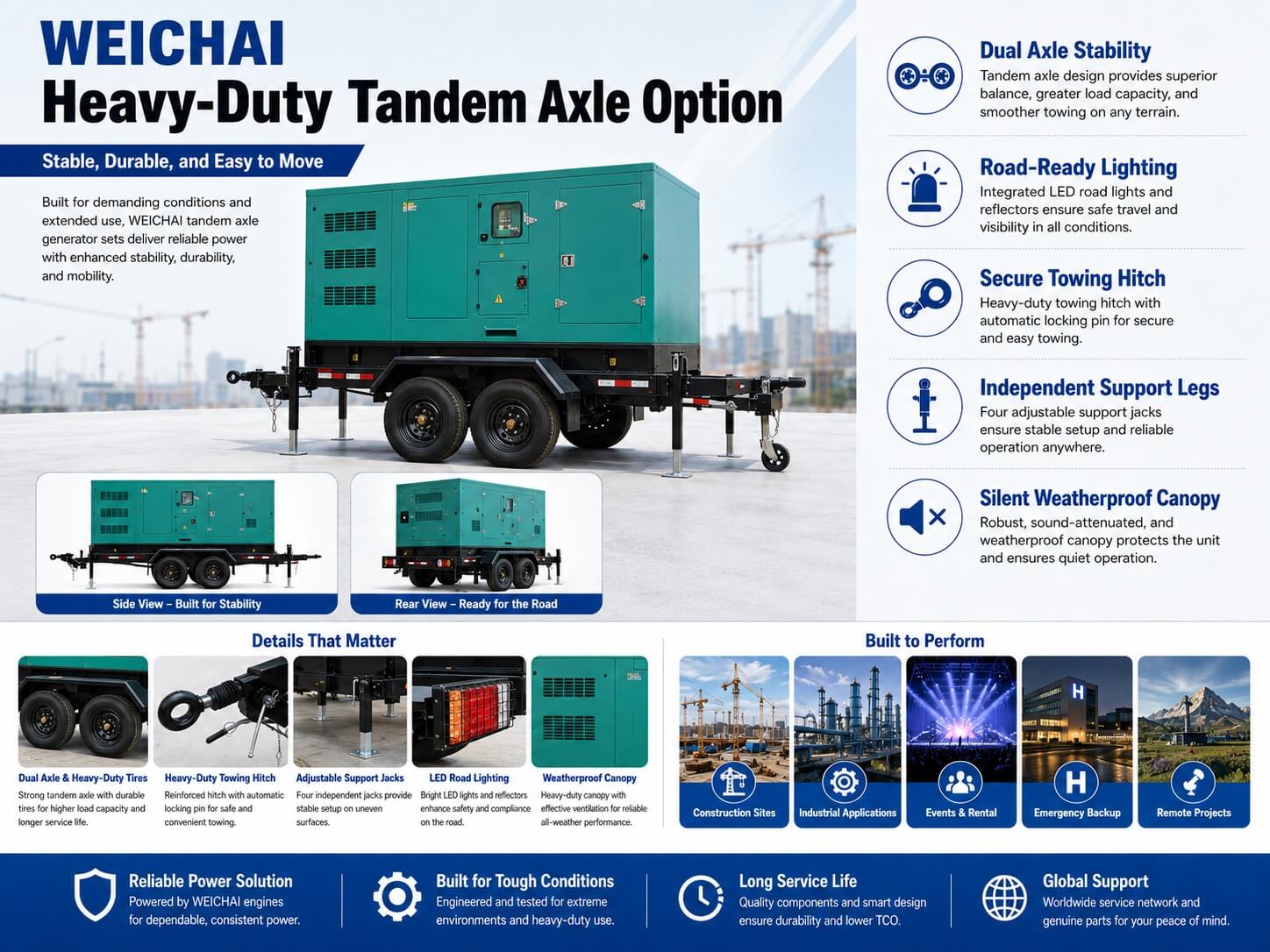

The genset is installed on a strong steel trailer chassis. Single-axle and tandem-axle options are available according to genset capacity and customer requirements.
Optional soundproof and weatherproof canopy helps reduce noise and protect the generator set from rain, dust and harsh outdoor conditions. It is suitable for outdoor projects and noise-sensitive areas.
The digital control panel can monitor voltage, current, frequency, running hours, oil pressure, water temperature and alarm status. Automatic protection functions improve safety and operation reliability.
Voltage, frequency, alternator brand, canopy color, trailer type, fuel tank capacity and control system can be customized according to different project needs.
WEICHAI Trailer Mounted Diesel Generator Sets are widely used in:
Construction sites
Road and bridge projects
Mining and quarry operations
Oil and gas field projects
Emergency power supply
Outdoor events and exhibitions
Rental power business
Industrial temporary power supply
Remote areas without stable grid power
Municipal engineering projects
Before shipment, each generator set can be tested according to project requirements. Inspection items include appearance check, wiring inspection, control panel test, protection function test, no-load test, load test, voltage stability test, frequency stability test and emergency stop test.
LINKWORLD aims to provide customers with generator sets that are reliable, safe, easy to operate and suitable for long-term use.
WEICHAI Powered Series Silent Type Gensets Configuration Table:
No. | GENSET | Prime Power | Standby Power | Engine | Cylinder | Lubricating oil capacity | Bore*Stroke | Fuel Consumption | Dimension | ||
KVA | KW | KVA | KW | WEICHAI | (nos) | (L) | (mm) | (g/kw·h) | mm | ||
WEICHAI POWER SERIES | |||||||||||
1 | LW-W50 | 62.5 | 50 | 68.75 | 55 | WP4D66E200 | 4 | 18 | 105*130 | 198 | 2400×1000×1530 |
2 | LW-W80 | 100 | 80 | 110 | 88 | WP4D100E200 | 4 | 20 | 105*130 | 198 | 3000×1200×1740 |
3 | LW-W100 | 125 | 100 | 137.5 | 110 | WP4D108E200 | 4 | 20 | 105*130 | 198 | 3000×1200×1740 |
4 | LW-W120 | 150 | 120 | 165 | 132 | WP6D132E200 | 6 | 22 | 105*130 | 198 | 3300×1400×1940 |
5 | LW-W140 | 175 | 140 | 192.5 | 154 | WP6D152E200 | 6 | 22 | 105*130 | 198 | 3300×1400×1940 |
6 | LW-W150 | 187.5 | 150 | 206.25 | 165 | WP6D167E200 | 6 | 22 | 105*130 | 198 | 3300×1400×1940 |
7 | LW-W180 | 225 | 180 | 247.5 | 198 | WP10D200E200 | 6 | 25 | 126*130 | 198 | 3300×1400×1940 |
8 | LW-W200 | 250 | 200 | 275 | 220 | WP10D238E200 | 6 | 27 | 126*130 | 198 | 3300×1400×1940 |
9 | LW-W250 | 312.5 | 250 | 343.75 | 275 | WP10D264E200 | 6 | 27 | 126*130 | 198 | 4000×1800×2300 |
10 | LW-W280 | 350 | 280 | 385 | 308 | WP12D317E200 | 6 | 32 | 126*155 | 198 | 4000×1800×2300 |
11 | LW-W300 | 375 | 300 | 412.5 | 330 | WP10D320E200 | 6 | 32 | 126*155 | 198 | 4000×1800×2300 |
12 | LW-W350 | 437.5 | 350 | 481.25 | 385 | WP13D385E200 | 6 | 32 | 127*165 | 198 | 4300×2100×2500 |
13 | LW-W380 | 475 | 380 | 522.5 | 418 | WP13D405E200 | 6 | 35 | 127*165 | 198 | 4300×2100×2500 |
14 | LW-W400 | 500 | 400 | 550 | 440 | WP13D440E310 | 6 | 35 | 127*165 | 198 | 4500×2100×2600 |
15 | LW-W450 | 562.5 | 450 | 618.75 | 495 | WHM6160SD518-5 | 6 | 48 | 160*200 | 215 | 4500×2100×2600 |
16 | LW-W550 | 687.5 | 550 | 756.25 | 605 | WHM6160MD628-5 | 6 | 48 | 160*216 | 215 | 4700×2100×2600 |
No. | GENSET | Prime Power | Standby Power | Engine | Cylinder | Lubricating oil capacity | Bore*Stroke | Fuel Consumption | Dimension | ||
KVA | KW | KVA | KW | YUCHAI | (nos) | (L) | (mm) | (g/kw·h) | mm | ||
WEICHAI BAUDOUIN SERIES | |||||||||||
1 | LW-WB400 | 500 | 400 | 550 | 440 | 6M26D447E200 | 6 | 60 | 150*150 | 210 | 4500×2100×2600 |
2 | LW-WB450 | 562.5 | 450 | 618.75 | 495 | 6M26D484E200 | 6 | 60 | 150*150 | 210 | 4500×2100×2600 |
3 | LW-WB520 | 650 | 520 | 715 | 572 | 6M33D572E200 | 6 | 60 | 150*185 | 210 | 4700×2100×2600 |
4 | LW-WB550 | 687.5 | 550 | 756.25 | 605 | 6M33D605E200 | 6 | 60 | 150*185 | 210 | 4700×2100×2600 |
5 | LW-WB720 | 900 | 720 | 990 | 792 | 12M26D792E200 | 12 | 120 | 150*150 | 210 | 6000×2300×2930 |
6 | LW-WB820 | 1025 | 820 | 1127.5 | 902 | 12M26D902E200 | 12 | 120 | 150*150 | 210 | 6000×2300×2930 |
7 | LW-WB900 | 1125 | 900 | 1237.5 | 990 | 12M26D968E200 | 12 | 120 | 150*150 | 210 | / |
8 | LW-WB1000 | 1250 | 1000 | 1375 | 1100 | 12M33D1108E200 | 12 | 135 | 150*185 | 210 | / |
9 | LW-WB1100 | 1375 | 1100 | 1512.5 | 1210 | 12M33D1210E200 | 12 | 135 | 150*185 | 210 | / |
Silent canopy
Weatherproof canopy
ATS automatic transfer switch
External fuel tank
Single-axle trailer
Tandem-axle trailer
Adjustable support jacks
Towing eye and jockey wheel
Brake system
Road lighting system
Cable and connector system
Remote monitoring system
Customized voltage and frequency
Customized color and logo
Yes. We can provide 50Hz or 60Hz generator sets. Voltage can be customized according to local project requirements, such as 220V, 380V, 400V, 415V, 440V or other standards.
Yes. Three-phase generator sets are commonly used for industrial and commercial projects. Single-phase options can also be supplied according to customer requirements.
Yes. We can provide high-temperature radiator options such as 50°C or 55°C radiator for hot climate applications.
Yes. Besides open type generator sets, we can also provide silent type, weatherproof type and trailer type WEICHAI diesel generator sets.
Yes. Automatic Transfer Switch can be provided for emergency standby power systems. When the mains power fails, the generator set can start and transfer power automatically according to the control system design.
WEICHAI diesel generator set, WEICHAI diesel genset, WEICHAI powered generator, 50kW diesel generator, 1100kW diesel generator, industrial diesel generator, open type diesel generator, silent diesel generator, standby diesel generator, prime power generator, China diesel generator supplier, LINKWORLD generator set
Need a reliable WEICHAI diesel generator set for your project? Contact HONGKONG LINKWORLD EQUIPMENT CO., LIMITED for model selection, technical support and competitive quotation.
